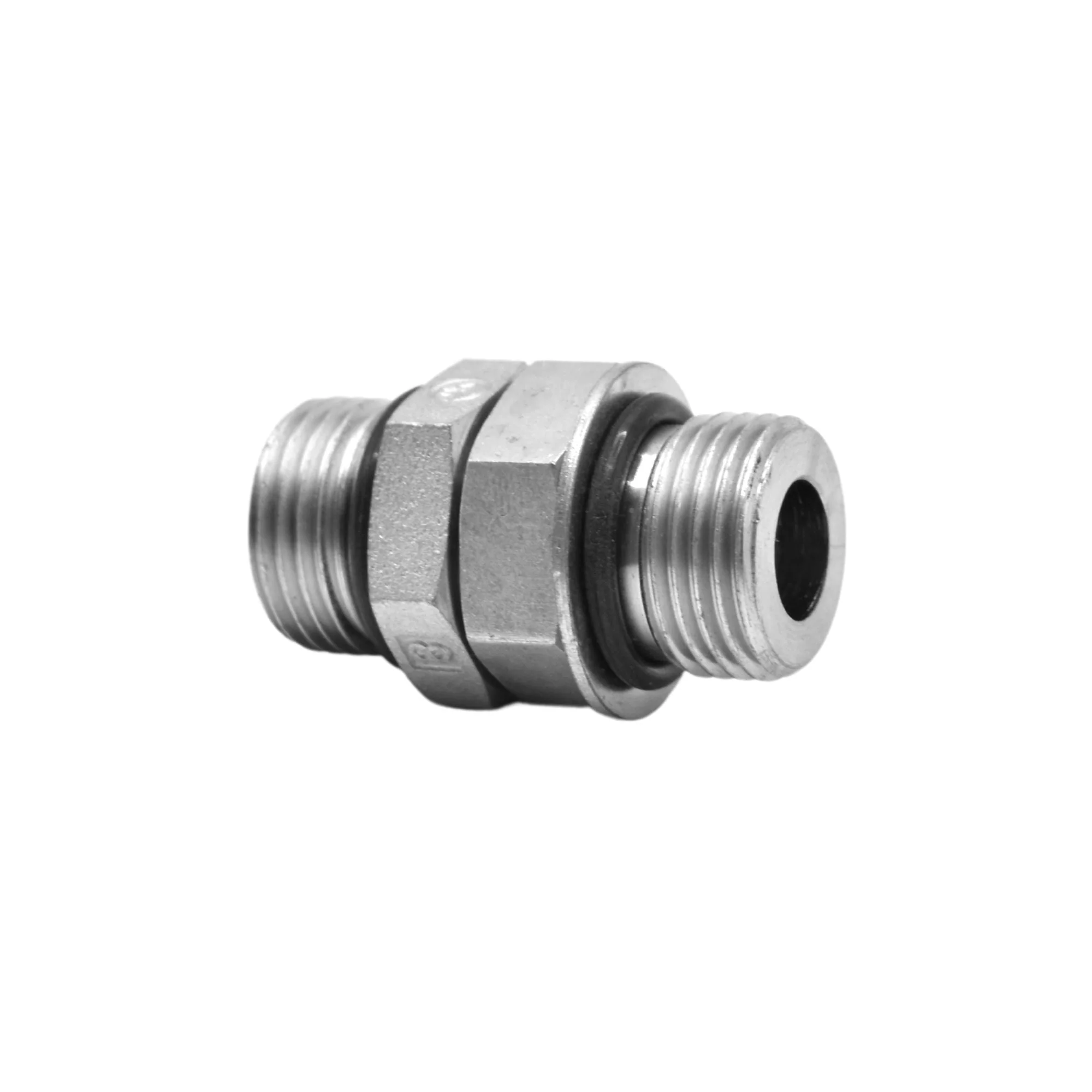

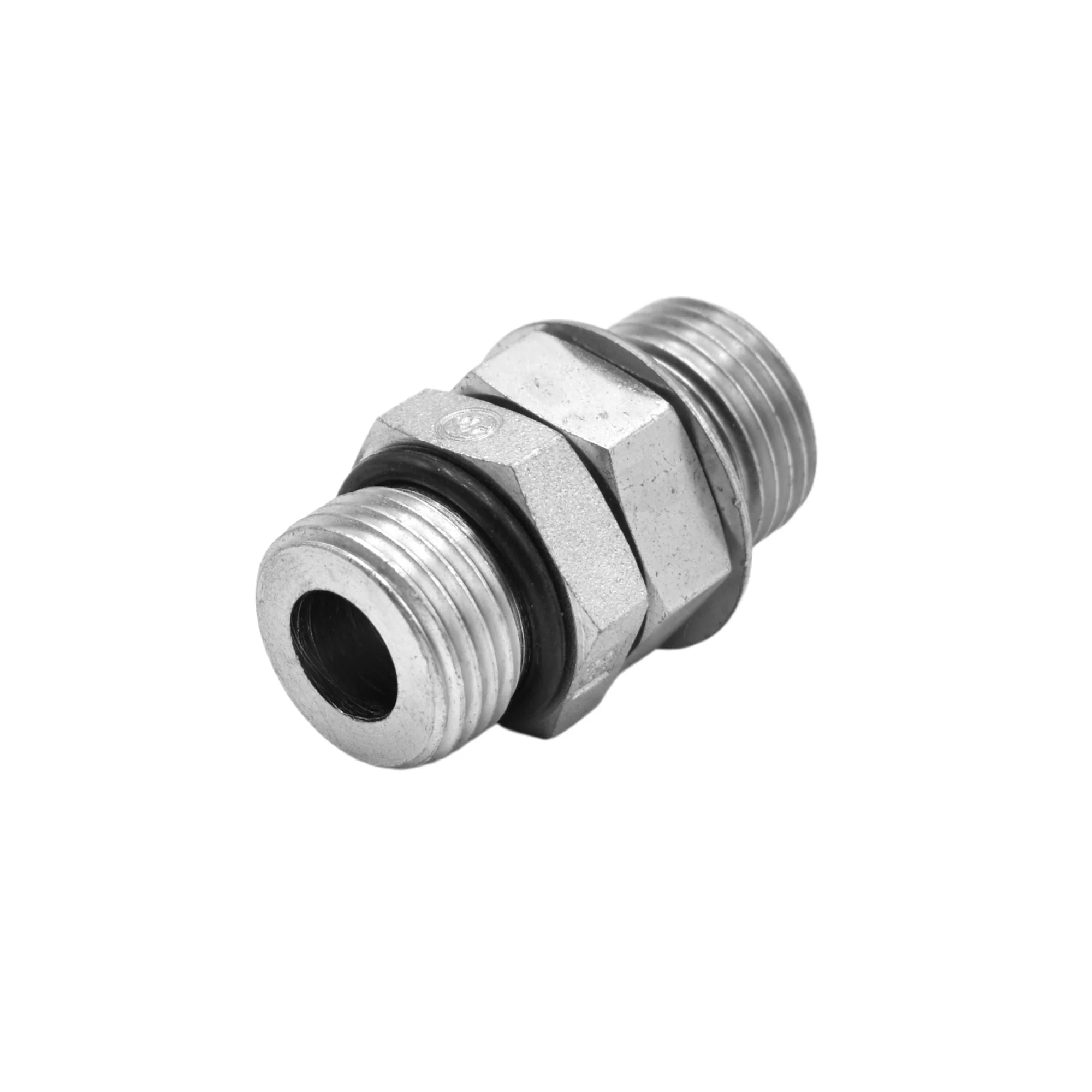

Hydraulics | 08MAORB-08MORB Straight Adapter | 3474-08-08-NWO
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE O-RING BOSS |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.560 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.16 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$4.14
Hydraulics | 08MAORB-08MORB Straight Adapter | 3474-08-08-NWO—
$4.14
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE O-RING BOSS |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.560 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.16 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
